600 MHz TV White Space Antennas from 470 - 698 MHz
-

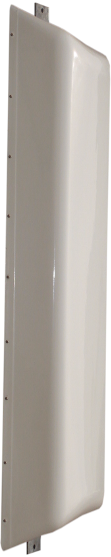

Vertically Polarized Sector Panel Antenna
-
Horizontally Polarized Sector Panel Antenna
-
60, 90, and 120 Degree Beam Width
-
Low PIM
-
Ideal for Digital Base Stations
High Quality - Industrial Grade - Manufactured in Canada - Ships Worldwide

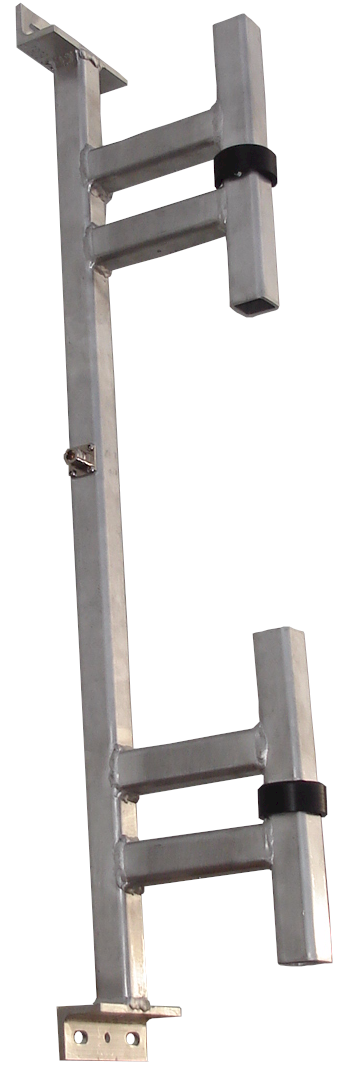

Antennas in the 600 MHz band from 470-698 MHz called TV White Space. All models below have excellent PIM and are ideal for low power digital services. The antennas feature different beam widths, such as 60 degree beam width, 90 degree beam width, 120 degree beam width, and a full 360 degree beam width in both horizontal polarization and vertical polarization. All 600 MHz sectorals have the internal radiatiors composed of structural aluminum and are welded at critical joints for robust operation, consistent low PIM, and long-term reliability. All 600 MHz antennas are carefully crafted and are made to operate without failure in the most severe installation environments. Included with all models is standard galvanized mounting hardware for any mast or pipe OD size.
Click the IMAGE for more info.
60 Degree Beam Width, Vpol
Vertical 13.5 dBi gain
Vertical 16.5 dBi gain
Vertical 19.5 dBi gain
60 Degree Beam Width, Hpol
Horizontal 13.5 dBi gain
Horizontal 16.5 dBi gain
Horizontal 19.5 dBi gain
90 Degree Beam Width, Vpol
Vertical 11.8 dBi gain
Vertical 14.8 dBi gain
Vertical 17.8 dBi gain
90 Degree Beam Width, Hpol
Horizontal 11.6 dBi gain
Horizontal 14.6 dBi gain
Horizontal 17.6 dBi gain
120 Degree Beam Width, Vpol
Vertical 10.8 dBi gain
Vertical 13.8 dBi gain
Vertical 16.8 dBi gain
60 Degree Vpol
90 Degree Vpol
120 Degree Vpol
Horizontal 16.1 dBi gain
Horizontal 14.0 dBi gain
Horizontal 13.1 dBi gain

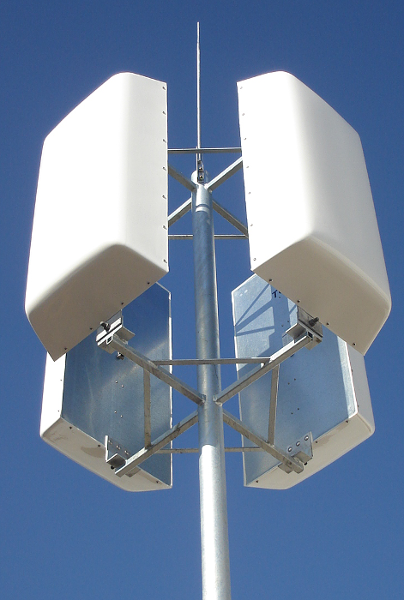

200 Degree Vpol
360 Degree Vpol
Vertical 7.6 dBi gain
Vertical 7.6 dBi gain
