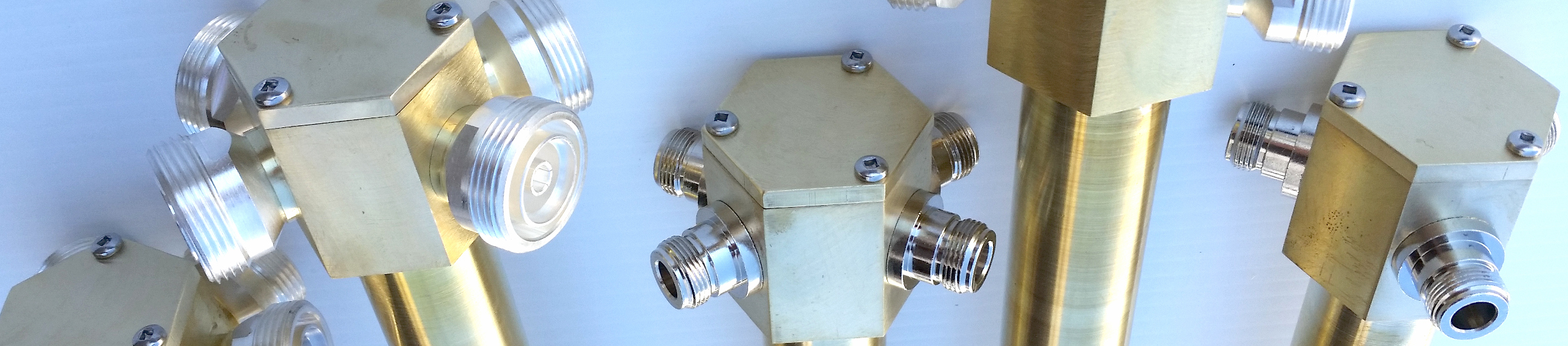

Coaxial Power Dividers in the VHF Radio band from 108-174 MHz

VHF power dividers are tuned on a per channel basis or can be tuned across the entire band depending on VSWR specifications. The following table shows the standard models available. Custom models are also available if you have a non-standard application.

Connector interfaces are flexible based on insertion power. Divisional ports on standard models are equal in phase and amplitude.


VHF power dividers are tuned on a per channel basis or can be tuned across the entire band depending on VSWR specifications. The following table shows the standard models available. Custom models are also available if you have a non-standard application.

Connector interfaces are flexible based on insertion power. Divisional ports on standard models are equal in phase and amplitude.

Frequency Range: 108-174 MHz
Impedance: 50 ohms
Insertion Loss: <0.1 dB
Power Split Ratio
2-Way: 50% x 2
3-Way: 33.3% x 3
4-Way: 25% x 4
5-Way: 20% x 5
6-Way: 16.6% x 6
8-Way: 12.5% x 8
VSWR: <1.05 per channel
Phase: 0 Degrees on O/P ports
Max CW Common Connector
1 kW: N female
3 kW: 7-16 female
5 kW: 7/8 EIA
DC Continuity: Continuity all ports
Material
Outer Conductor: C272 Brass
Inner Conductor: 6082/6061 Aluminum
Mounting: HDG clamps available


Specifications are subject to change without notice.
